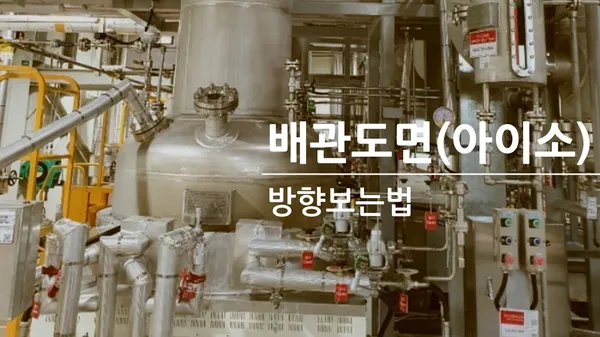

ISO Diagram (Piping Direction)
Key Points
- 1This video introduces isometric drawings (iso drawings) as 3D representations of pipe sections, crucial for understanding piping systems.
- 2It primarily focuses on interpreting pipe directions, explaining that North (N), South (S), East (E), and West (W) are indicated on the drawing, with North typically marked.
- 3The presenter demonstrates how to visualize pipe movement (e.g., North to South, or vertically down) using a cube analogy to represent the three-dimensional space.
This paper, presented as a YouTube video tutorial, introduces the fundamental concepts for interpreting piping isometric (iso) drawings. The primary objective is to equip viewers with the basic skills required to understand these specialized technical drawings, which provide a three-dimensional representation of a piping system's section.
The video defines an iso drawing as a sliced, 3D view of a piping section that aids in comprehending its spatial arrangement, likening it to a "resident registration card" for a pipe. This specific tutorial focuses on two foundational aspects: determining direction and understanding height changes within the drawing.
The core methodology detailed in the video revolves around the interpretation of direction on iso drawings:
- Cardinal Directions Understanding: The tutorial begins by establishing the standard abbreviations for the four cardinal directions: East (E), West (W), South (S), and North (N). These foundational directional references are crucial for spatial orientation within the drawings.
- North Indicator Identification: A key step in interpreting an iso drawing is to locate the "North indicator" (북쪽 표기), which is always present on the drawing. This indicator serves as the primary reference point for all other directions depicted.
- Line Orientation Interpretation:
- Horizontal Movement: Within the iso drawing's representation, lines that appear horizontally or diagonally across the plane (relative to the North indicator) denote horizontal movement of the pipe along the cardinal directions (e.g., from North to South, or West to East).
- Vertical Movement: Lines depicted vertically on the iso drawing represent changes in the pipe's elevation, indicating movement either upwards or downwards.
- 3D Visualization Aid: To facilitate understanding and overcome potential difficulties in visualizing the 3D space from a 2D drawing, the presenter suggests a practical visualization technique: mentally or physically sketching a simple 3D cube (referred to as "깍두기" - diced cube). By superimposing the pipe segments onto this cube, viewers can better conceptualize the pipe's path within a three-dimensional coordinate system, where axes align with the cardinal directions and the vertical dimension.
The video provides practical examples demonstrating how a pipe segment moving from North to South, or from West to East, would be represented, and similarly, how vertical descents are depicted. While "height" (높이) is mentioned as a key concept to be covered, the video explicitly states that a detailed explanation of height changes will be deferred to a subsequent session due to time constraints, making this video's primary focus the elucidation of directional interpretation.
